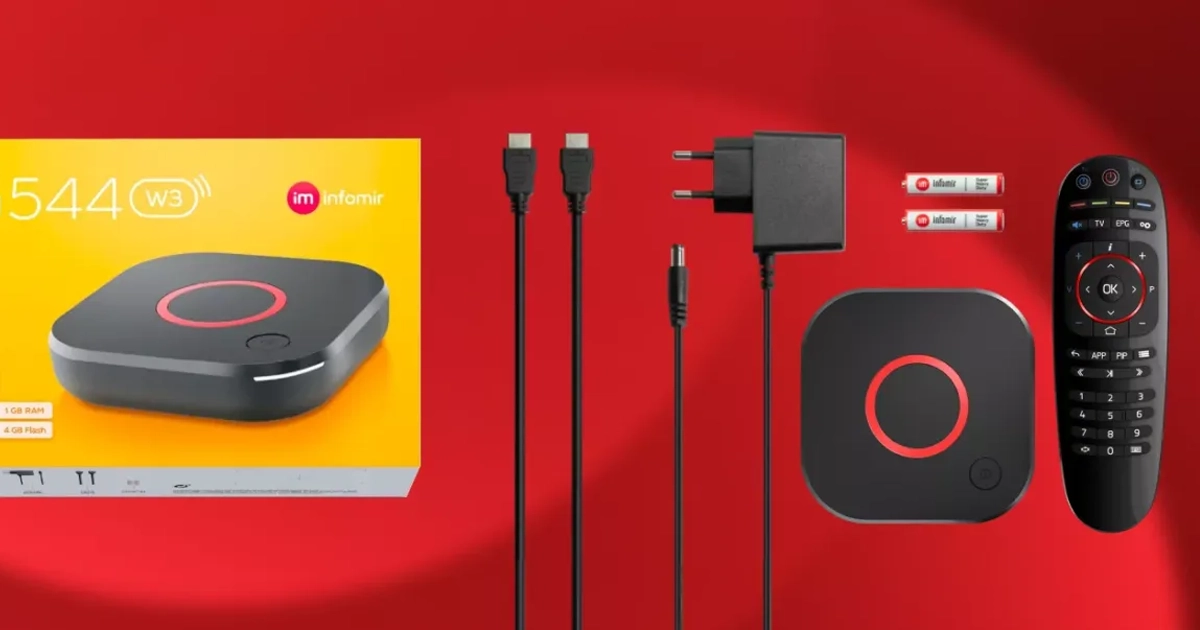

MAG544w3 review: powerful IPTV set-top box from Infomir
The MAG544w3 is a device from the fifth series of Infomir TV set-top boxes. The device plays various current video formats, supports surround sound, and can play content for a long time without restarting. In this article we’ll tell you everything you need to know about the hardware and software of this model.

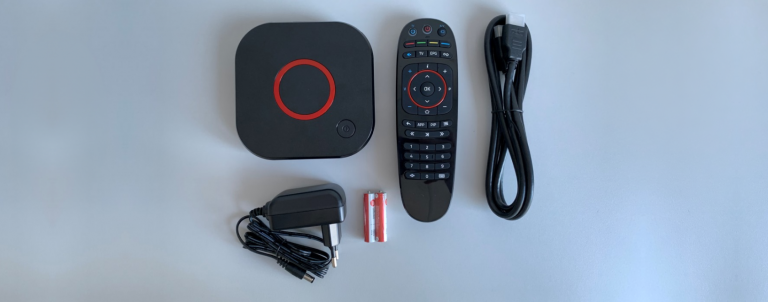

Components:
- MAG544w3 set-top box
- Remote control
- Two AAA batteries
- HDMI cable
- Power unit
- User manual
Processor and Memory
The MAG544w3 is equipped with a quad-core ARM Cortex-A35 processor and Amlogic S905Y4 chipset. The device has 1GB of RAM and 4GB of internal memory. The TV set-top box’s specifications ensure smooth playback of content in 4K HDR format at 60 fps and due to the support of HEVC codec, video in high quality is stably downloaded even at low internet speeds.
Software
The MAG544w3 TV set-top box operates under Linux 4.9 and automatically updates the software to improve productivity and implement any new features. During the software update, the device can’t play content, but the process only takes a few minutes and users can then immediately return to watching their favourite TV shows.
The device also supports a variety of image formats (including JPEG, PNG, BMP and RAW) and provides subtitle functionality for comprehensive viewing, making it an ideal all-in-one media player.
Sound
The MAG544w3 supports Dolby Digital Plus™ surround sound technology. All you need to do is connect a TV or audio system with eight-channel sound support to the set-top box.
Ports

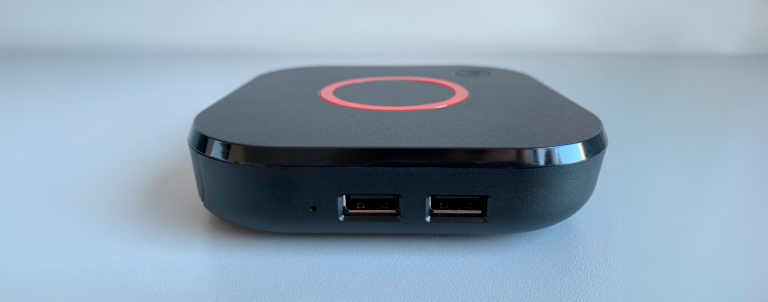

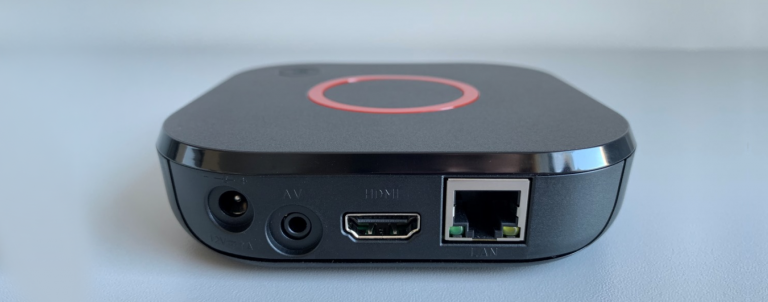

The set-top box is equipped with a modern HDMI 2.1 port to connect to a TV. You can also connect additional peripherals (mouse, keyboard) or an external drive to the device — two USB 2.0 ports are used for this purpose.
Internet connection
To connect the set-top box to the Internet you can use the Ethernet port or the integrated dual-band Wi-Fi module. The first method will provide a stable Internet connection up to 100 Mbps, but if you choose wireless connection you can achieve speeds up to 150 Mbps (in the 2.4 GHz band) or up to 540 Mbps (in the 5 GHz band).
Remote control

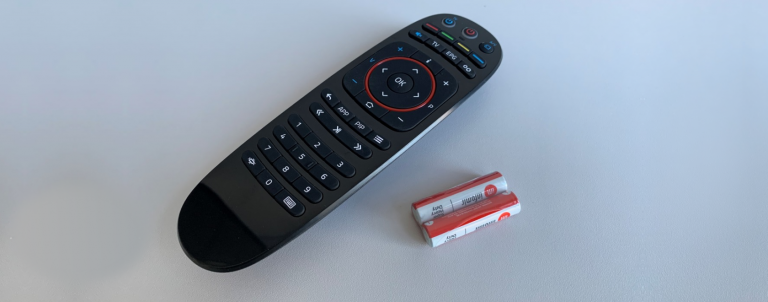

The MAG544w3 is supplied with a programmable remote control which can be used for both the set-top box and the TV.
The convenient design of the remote control means that it’s easy to operate and has a high degree of reliability. Its ergonomic body is made of durable ABS plastic that won’t slip in your hands and the buttons are designed to withstand more than 300,000 presses. The remote comes with two AAA batteries for immediate use.
Power supply
The set-top box is supplied with a power unit that plugs into a standard outlet and is capable of transforming AC voltage from 100 to 220 V to DC voltage of 5 V. The service life of the power unit is up to 30,000 hours. The body of the unit is made of durable plastic that is resistant to wear and tear.
User manual
A user manual and warranty card are also provided in the package. The manual contains useful information on setting up and using the set-top box, while its online version is available on the official website.
The MAG544w3 is a reliable IPTV set-top box that allows you to watch content in high quality up to 4K. The device optimally combines hardware and software features to ensure smooth and stable video playback in various current formats. Surround sound support and versatile remote control design enhance the user experience to a new level.
